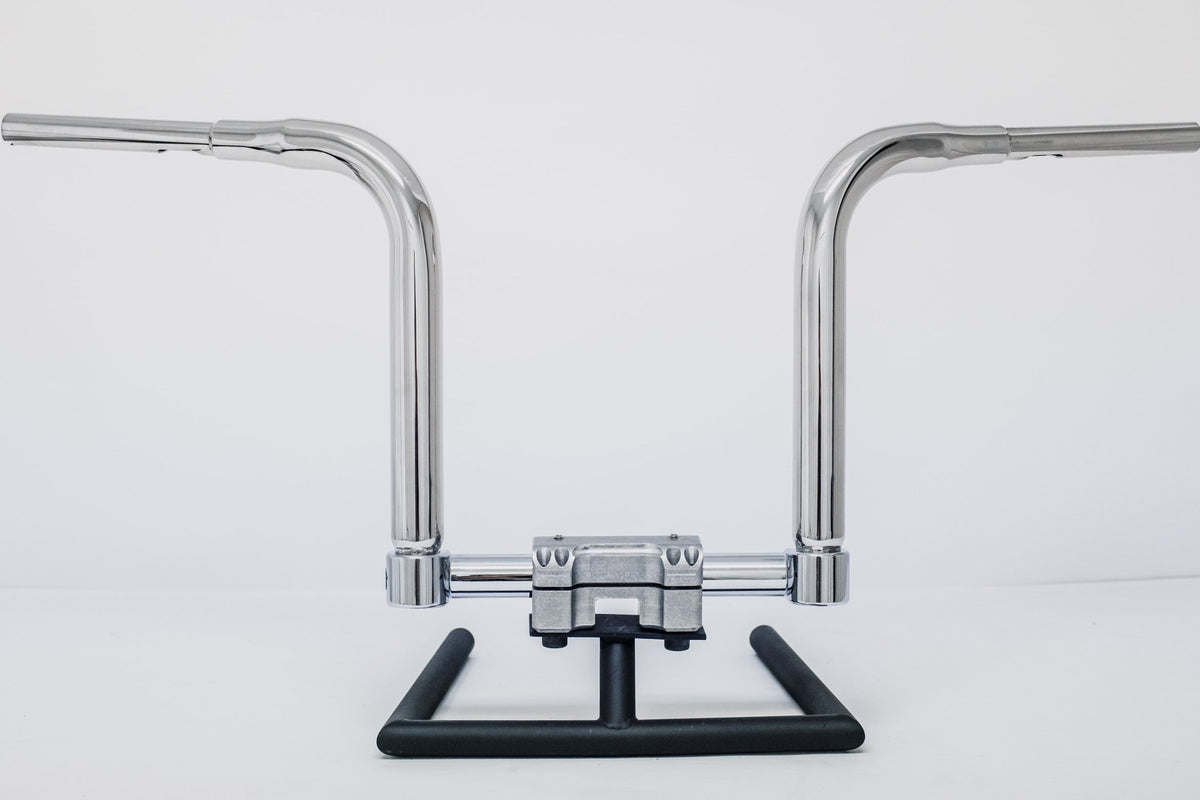

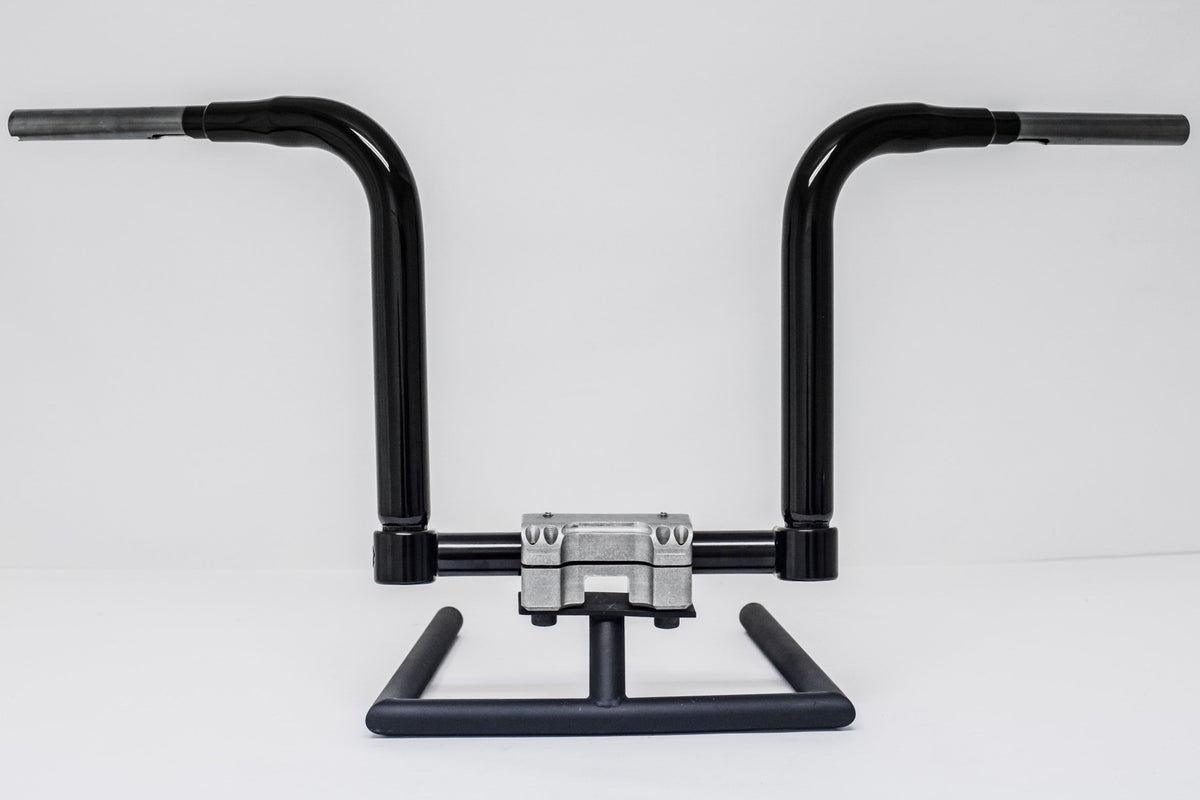

Pioneer for '24-'26 Road Glide | Harley Handlebars

$555.00

The Pioneer Series is KST's classic custom ape hanger for Harley riders who want more height without moving into a pointed or squared-off style. Its tight top bend and clean rise give Road Glide, Road King, Softail, Dyna, and Sportster builds a familiar Harley profile with more presence than stock handlebars. The adjustable design gives riders room to set hand position, pullback, and comfort around their height and riding posture, making it a practical upgrade for riders who don't want to be locked into one fixed riding position.

10"

12"

14"

Polish

High Gloss Black

Fully Pre-Wired

None

Fully Pre-Wired and 4" Clutch Extension

4" Clutch Extension

SELECTED: — ✓

PRODUCT INFORMATION

Designed specifically for the all new 2023CVO and 2024 through 2026 Road Glide models.

This 3 piece, fully adjustable system gives you the versatility to customize the look and comfort of your Harley Davidson Motorcycle. The Vanguard Collection gives you the benefits of an adjustable handlebar, without sacrificing the looks of a traditional handlebar.

These handlebars are 1.5" OD which gives you a very strong and robust look.

Our hand polished stainless steel finish gives the appearance of chrome but with the durability of stainless. High Gloss black powder coating is from the same supplier used by Harley Davidson

Super Easy to internally wire- No more headache of running wires inside bars.

Clamping surface is knurled to ensure a solid and strong hold with no rotation in the clamp.

Click here to see overall widths

Base width is 13" outside to outside with a 1.25" diameter

The Pioneer is your traditional custom ape hanger. Featuring a nice tight bend on top with a 90 degree rise coming out of the clamp.

Stock Road Glide Handlebars are 10"

Can be purchased pre-wired '24-'26 Fully Pre-Wired and with a 4" Clutch Extension

-10" and 12" can be installed with stock brake, clutch and electrical. 14" will require a clutch extension, but the brake like will be fine at stock length

- The riser on the '24-'26 sits up about 2.5" higher compared to the previous 2015-2023 Road glide models, so keep in mind that a 10" will sit like a 12", 12" will sit like a 14", etc.

-'24-'26 CVO ST: Using our 3" CVOST Risers with a 12" bar will require a clutch extension

NARROW, CONTROLLED FEEL:

Designed for Harley-Davidson 2023 CVO and 2024-2026 Street Glide models.

This handlebar comes up and back toward the rider 4 extra inches compared to stock. The wrist angle is ergonomically redesigned to place your wrist in a more neutral position and help prevent rider fatigue.

Manufactured from 1.25-inch T304 ornamental-grade stainless steel and CNC mandrel bent.

Our hand-polished stainless steel finish gives the appearance of chrome with the durability of stainless steel. Our high-gloss black powder coating is produced by the same supplier used by Harley-Davidson.

Notched and slotted for internal wiring and throttle by wire. Will also fit non-throttle-by-wire models and accepts heated grips.

Specs: 33 inches wide tip to tip, 33-degree wrist angle, and +4 inches back to the rider.

Can be purchased with our 2024-2026 Pre-Wired Bundle.

2023 CVO and 2024-2026 model years: you will need to replace the upper clutch cable, but the brake and electrical will be fine at stock length.

INSTALLATION OPTIONS

CHOOSE THE SETUP THAT MATCHES YOUR BUILD AND INSTALLATION PREFERENCES.

FULLY PREWIRED

Take the internal wiring out of your handlebar installation. KST extends the electrical harness to accommodate handlebars up to 16 inches tall and routes it through the bars before shipment. Once your handlebars arrive, connect the switch controls, plug the harness into the motorcycle, and complete the remaining installation.

Best for:

Riders who want to avoid extending and routing the electrical wiring through the handlebars.

UPPER CLUTCH CABLE

Replace the factory upper clutch cable with a quick-connect cable designed for your handlebar height. It connects to the existing lower cable section, reducing installation time without requiring you to drain the transmission fluid.

Best for:

Riders installing handlebars that require additional clutch cable length or would otherwise require reshaping the stock upper cable. Requirements vary by handlebar model and rise, so review the product’s fitment notes before selecting this option.

RECOMMENDED: UPPER CLUTCH CABLE AND FULLY PRE-WIRED

Get both installation upgrades together! Your handlebars arrive with the extended electrical harness already routed internally, plus the appropriate quick-connect upper clutch cable for the selected handlebar height. It’s the best value for riders who want a smoother install, fewer headaches, and the fastest path back on the road.

Best for:

Riders who want the most complete installation package with less internal wiring and clutch cable work required. This option is especially recommended when the selected handlebar rise requires an extended clutch cable.

PRODUCT VIDEOS

Follow the full install process for 2024-2026 Street Glide models and see how KST handlebars are fitted for a clean, proper installation.

Get a fitment overview for 2024-2026 Road Glide and Street Glide models, including the latest bike changes and what they mean for handlebar setup.
